#SWT (Standard Widget Toolkit)

Webswing provides support for running SWT applications in a web browser. In general, SWT applications are configured in the same way as regular Swing applications. You can use the Admin Console or edit the webswing.config file manually. However, SWT applications require a few additional settings. This page describes two supported configuration options.

#Option 1: Bundles

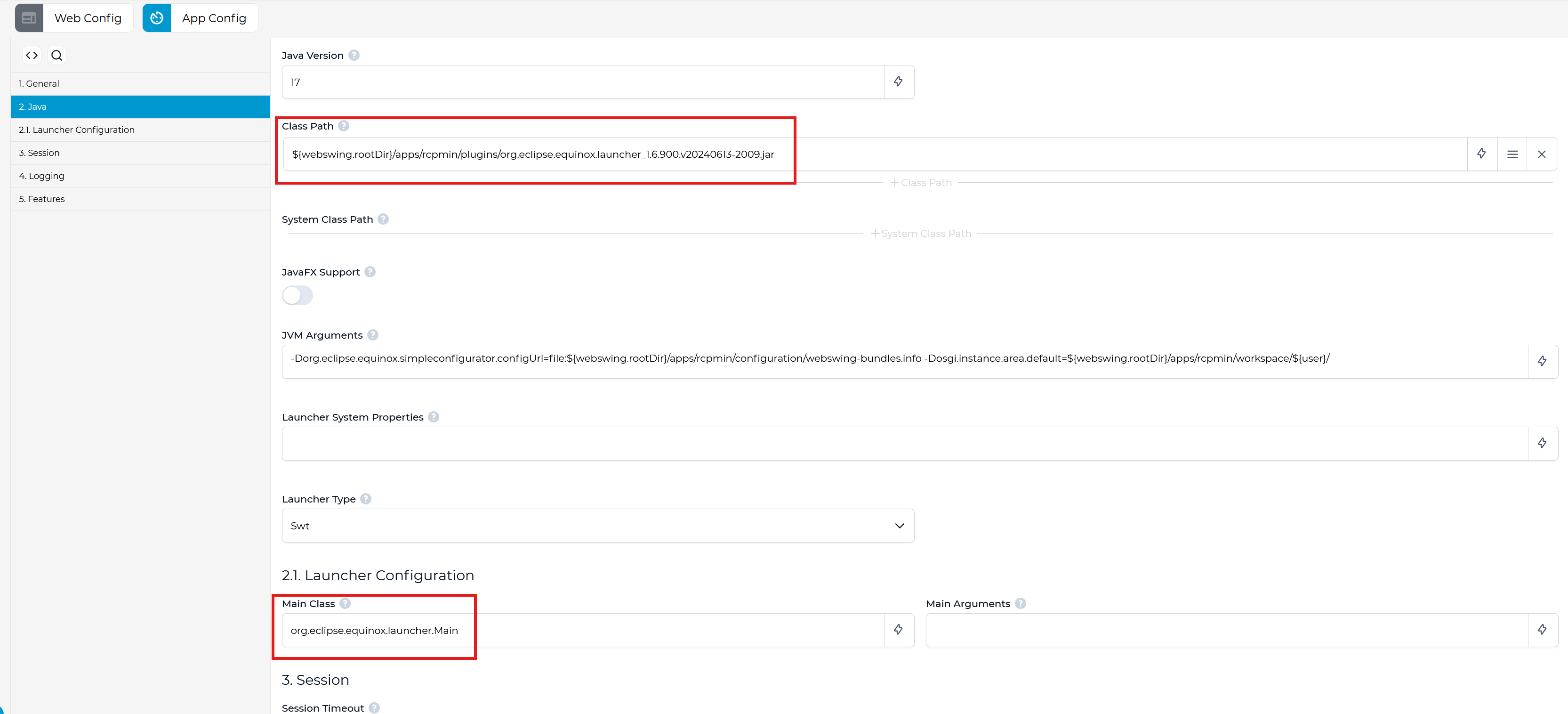

#Basic SWT Setup

In the Admin Console, open the Java section and configure the following settings.

#Class Path

Add the Eclipse Equinox launcher JAR.

Example:

${webswing.rootDir}/apps/rcpmin126/plugins/org.eclipse.equinox.launcher_1.6.900.v20240613-2009.jar

#Launcher Type

Set the launcher type to:

Swt

#Launcher Configuration

Set the SWT application main class.

For Eclipse RCP applications, the main class is always:

"mainClass": "org.eclipse.equinox.launcher.Main"

Note: The remaining properties are documented in the Swing application setup page.

#Advanced SWT Setup

If you want to configure an Eclipse RCP (Rich Client Platform) application you need configure some specific settings.

#JVM Arguments

Add the following JVM argument:

"vmArgs": "-Dorg.eclipse.equinox.simpleconfigurator.configUrl=file:${webswing.rootDir}/apps/rcpmin/configuration/webswing-bundles.info"

This tells the RCP application where to find the custom webswing-bundles.info file.

See Create webswing-bundles.info.

"vmArgs": "-Dosgi.instance.area.default=${webswing.rootDir}/apps/rcpmin/workspace/${user}/"

This tells the RCP application where to find the workspace.

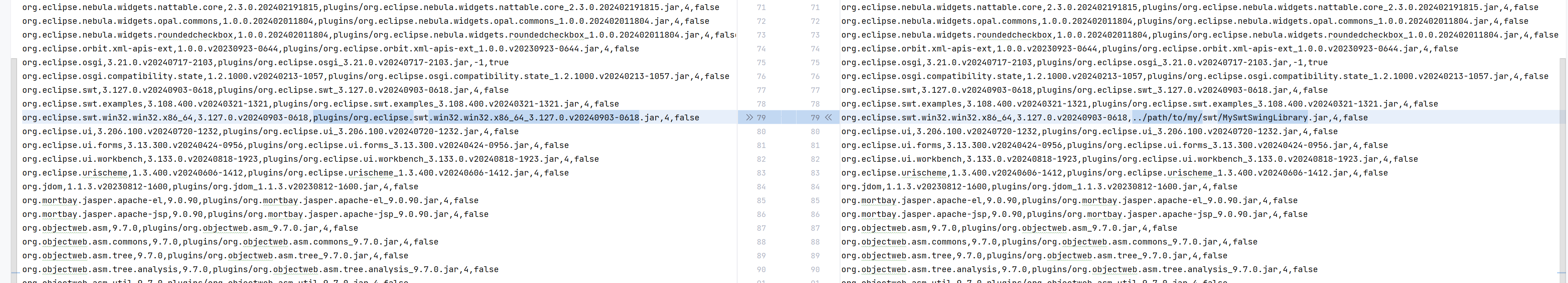

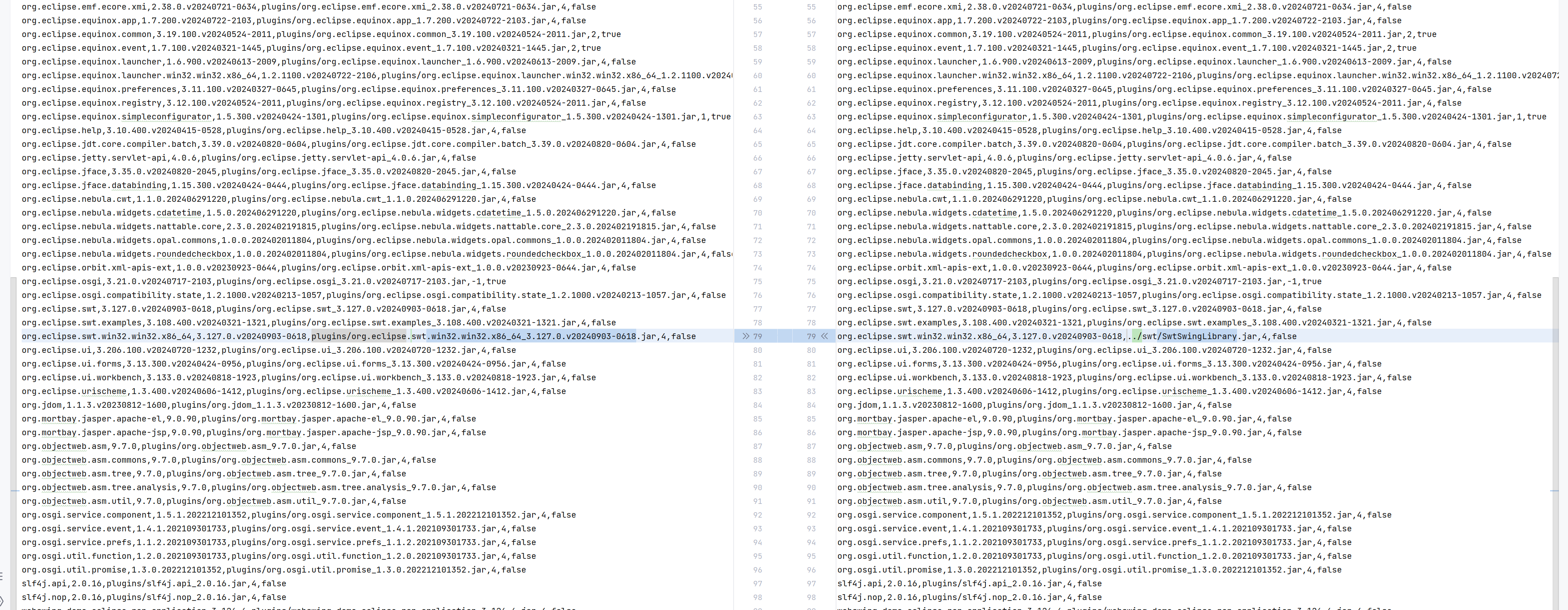

#Create webswing-bundles.info

You need to manually create a webswing-bundles.info file.

This file is a copy of the original bundles.info file. The only required change is the path to the following SWT bundle:

org.eclipse.swt.win32.win32.x86_64

#SWTSwing Library

Webswing uses SWTSwing from the following GitHub project:

https://github.com/Chrriis/SWTSwing

If you want to use your own SWTSwing library, configure the SWTSwingLibrary.jar path in webswing-bundles.info.

#Option 2: Classloader

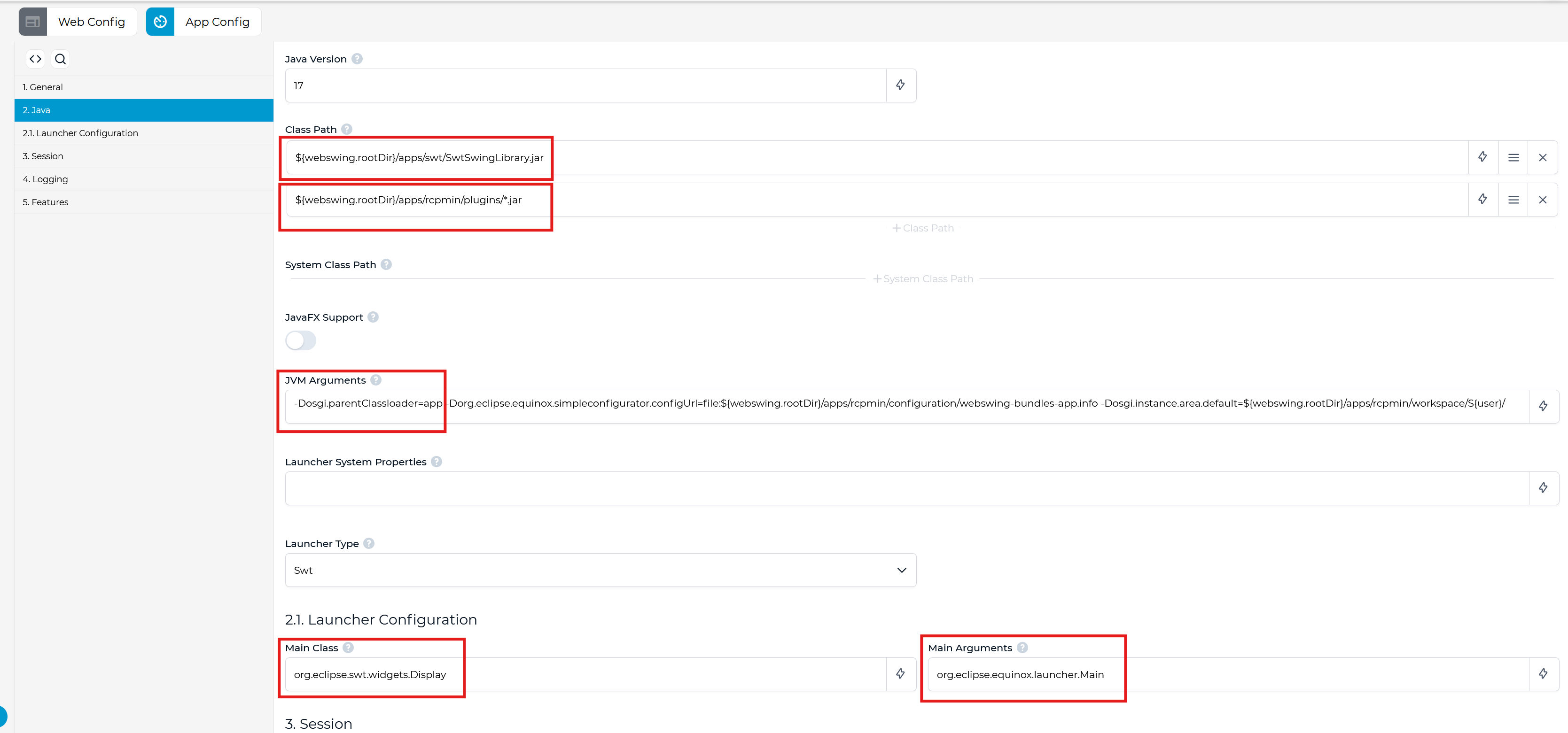

#Basic SWT Setup

In the Admin Console, open the Java section and configure the following settings.

#Class Path

Add the following entries to the class path:

1. First, add SwtSwingLibrary.jar:

${webswing.rootDir}/apps/swt/SwtSwingLibrary.jar

2. Then, add all application plugin JARs:

${webswing.rootDir}/apps/rcpmin/plugins/*.jar

#JVM Arguments

Add the following JVM arguments.

"vmArgs": "-Dosgi.parentClassloader=app"

This setting is required. It tells OSGi to use the application classloader.

#Launcher Type

Set the launcher type to:

Swt

#Launcher Configuration

Set the SWT application main class.

For this setup, use:

"mainClass": "org.eclipse.swt.widgets.Display"

For Eclipse RCP applications, set the main argument to:

"mainArguments": "org.eclipse.equinox.launcher.Main"

Note: The remaining properties are documented in the Swing application setup page.

#Advanced SWT Setup

If you want to configure an Eclipse RCP (Rich Client Platform) application you need configure some specific settings.

#JVM Arguments

Add the following JVM argument:

"vmArgs": "-Dorg.eclipse.equinox.simpleconfigurator.configUrl=file:${webswing.rootDir}/apps/rcpmin/configuration/webswing-bundles.info"

This tells the RCP application where to find the custom webswing-bundles.info file.

See Create webswing-bundles.info.

"vmArgs": "-Dosgi.instance.area.default=${webswing.rootDir}/apps/rcpmin/workspace/${user}/"

This tells the RCP application where to find the workspace.

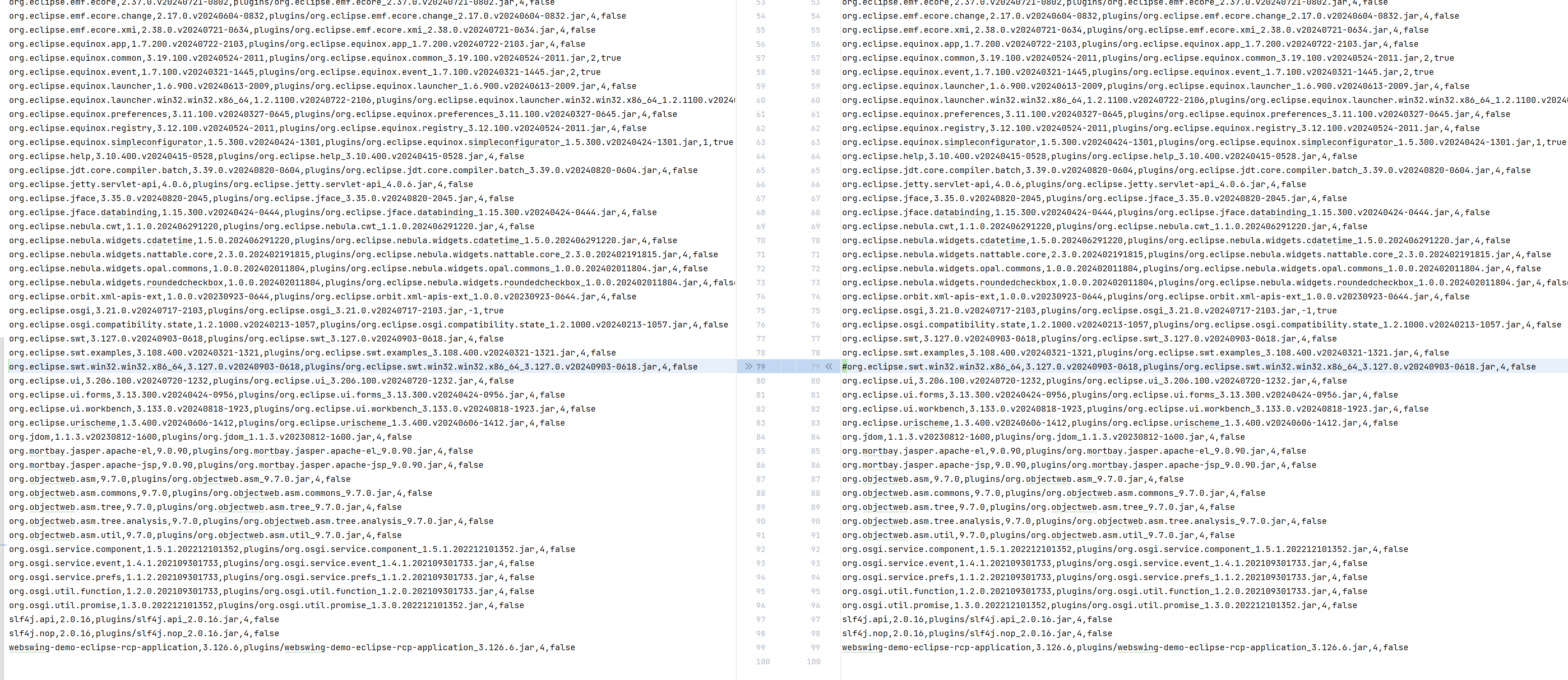

#Create webswing-bundles.info for app classloader

You need to manually create a webswing-bundles.info file.

This file is a copy of the original bundles.info file. For the ParentClassloader=app setup, the line for the following bundle must be commented out:

org.eclipse.swt.win32.win32.x86_64

#Advanced Settings

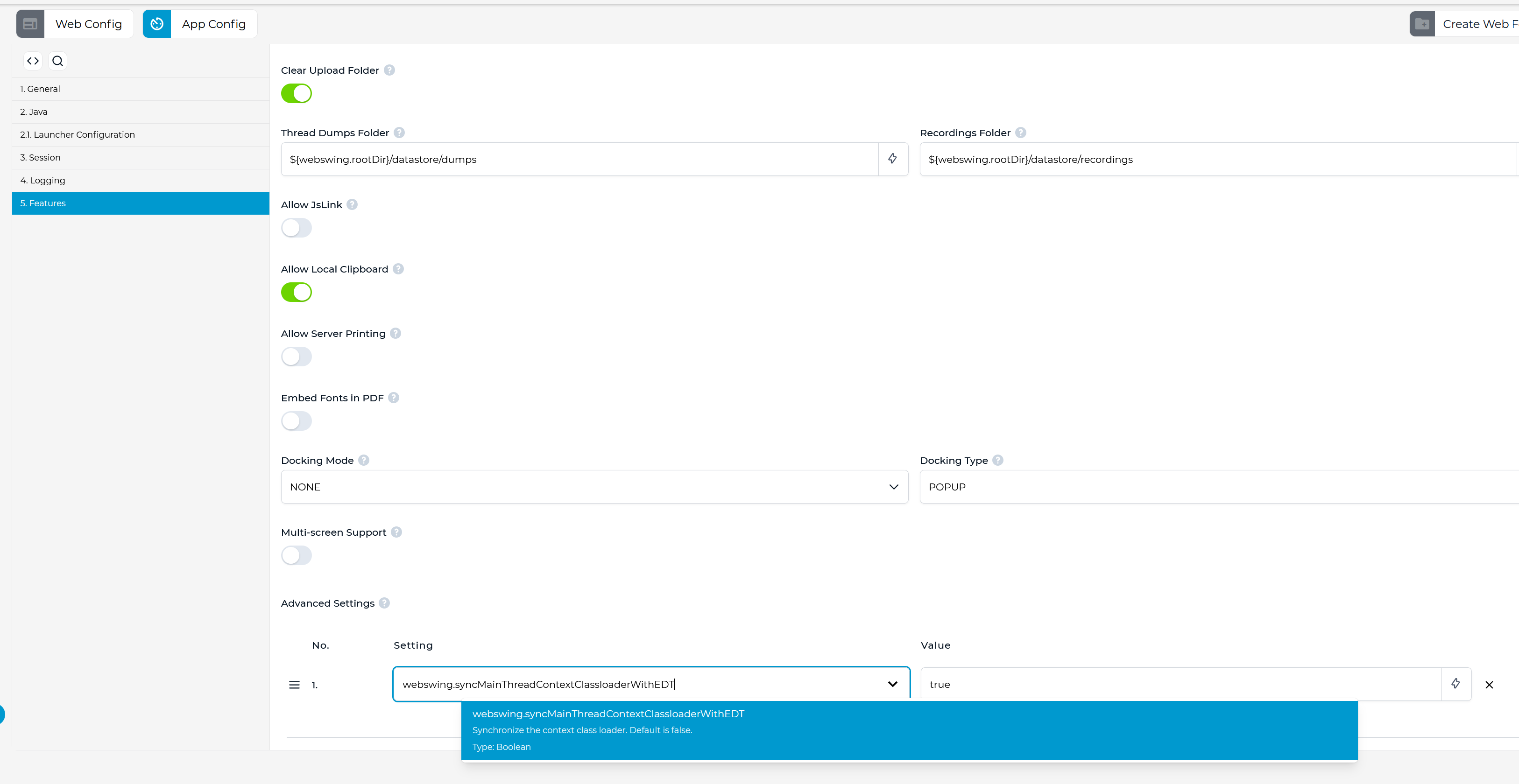

In some cases, you need to set the webswing.syncMainThreadContextClassloaderWithEDT parameter to true.
