#Desktop

#File system

Swing application running inside Webswing are ultimately using the file system of the server where Webswing is running. This causes problems to applications that consume or generate files and interact with file system.

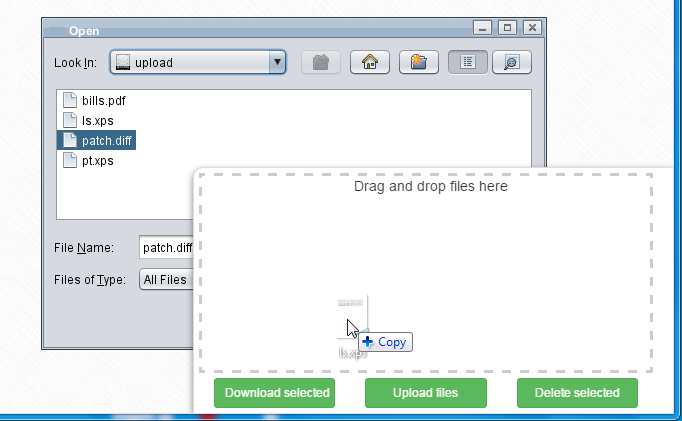

Webswing solves this problem by providing an automatic JFileChooser integration dialog, which offers users ability to interact with server's file system by uploading, downloading and deleting files from the browser.

Permissions

It is possible to disable upload, download or delete files in the Security tab of application settings in Admin console.

Isolated file system

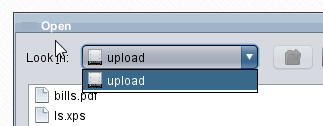

If the users are not supposed to have access to the full servers file system, Webswing offers the option to limit the access to isolated folder that they are allowed to interact with. This setting isolatedFs can be set in Security tab of application settings in Admin console. If it is enabled, the user will only see folder "upload" in homeDir folder.

#Printing

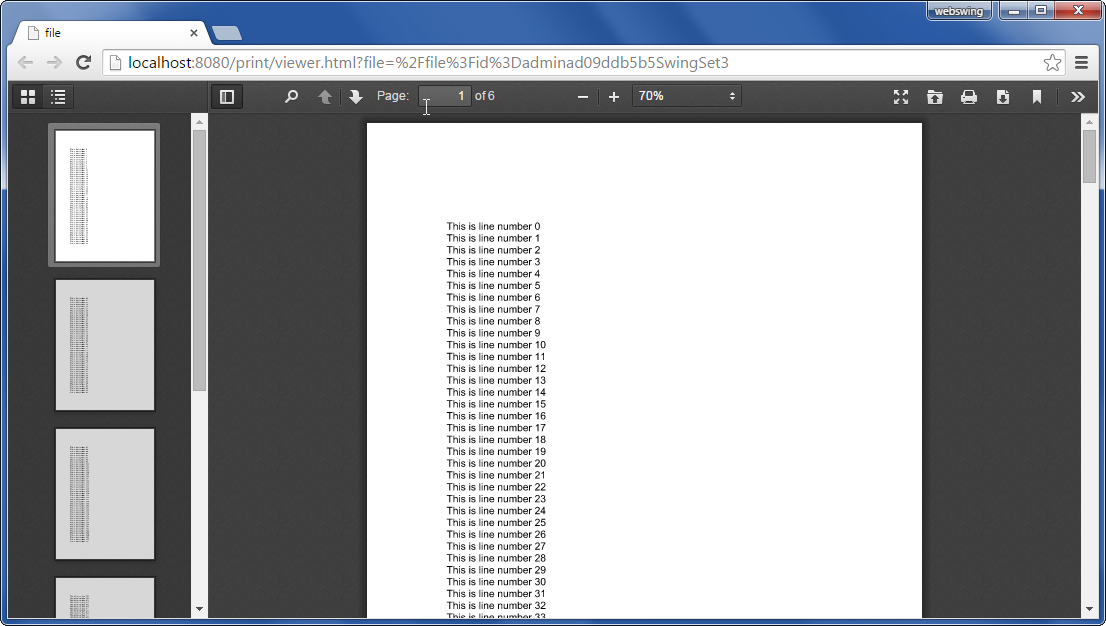

Webswing implements seamless printing support, which works out of the box without any change needed in your application. Webswing generates a pdf from the printed document and opens it in a new browser tab using PDF.js viewer.

Printing integration handles printing using:

• Toolkit.getDefaultToolkit().getPrintJob() method
• PrinterJob.getPrinterJob()
• multi paged documents
• landscape and portrait orientation

Printing is demonstrated in SwingSet3 demo with sample source codes included.

#Clipboard

Webswing has a built-in clipboard integration. Due to various browser security limitations some clipboard operations are limited at the moment.

#Copy

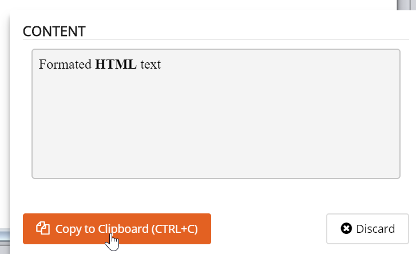

When the user triggers copy operation from the Swing application by pressing CTRL+c or in menu option, Webswing analyzes the data written to clipboard and notifies the client what type of data is available in clipboard by small dialog.

Webswing recognizes 5 basic types.

1. Plain text
2. HTML
3. Image
4. Files
5. Other (i.e. application specific types)

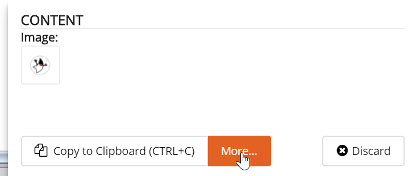

This dialog only informs the user that data is available in the Swing clipboard. To copy the Plain text or HTML type to local clipboard, the user has to press ctrl+c again while the dialog is visible. For copying the image, the user has to use the browser default behavior to copy the image to the local clipboard.

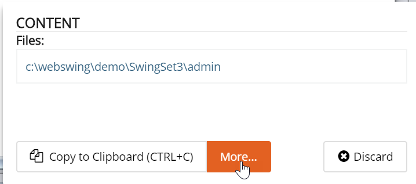

If the Swing clipboard contains files and allowDownload option is enabled, the user will be presented with list links allowing him to download those files from the Swing application.

Note: isolatedFs option does not apply here. Access is not limited to files in the isolated folder.

#Paste

Paste operation can be triggered by CTRL+v keyboard shortcut. But here it gets a little tricky, because we have our Swing clipboard data sitting on the server and we have a local browser clipboard data. So we need to decide which one to use for the paste operation.

The solution is simple. If the clipboard dialog is open, we use the Swing clipboard, because we know the user has just copied some data there. If the clipboard is not visible, we try to get the data from the local browser clipboard.

Note: if paste operation is triggered from context menu, it will always use the Swing clipboard data.

Pasting from Swing clipboard All types are accessible to application if pasting from Swing clipboard.

Pasting from local browser clipboard See the following matrix for supported types based on browser.

Browser	Supported content types
Chrome	Plain text, HTML, Images
Firefox	Plain text, HTML
IE	Plain text, HTML

#java.awt.Desktop

The AWT framework Desktop class is the default interface for triggering OS specific operations like edit file or open link. Webswing implements this interface and interprets these commands in a web browser-friendly way.

Method	Webswing operation
browse	Opens the specified link in new tab
edit	Referenced file is downloaded
mail	Opens a new email window in default mail client
open	Referenced file is downloaded
print	Referenced file is downloaded
